Microfono Neumann U87 Ai Set Araña Garantia Oficial

Descripción

MICROMUNDO SONIDO PROFESIONAL

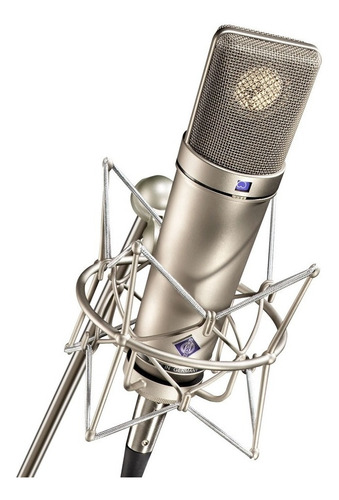

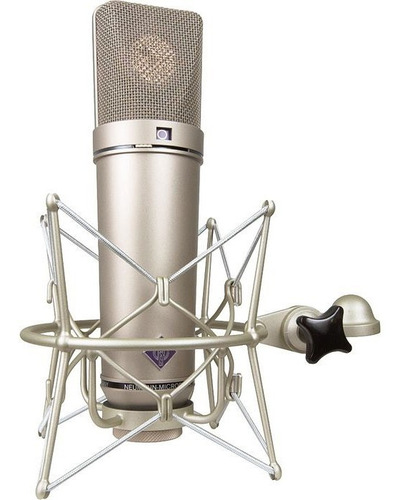

NEUMANN U87AI COLOR NIQUEL CON ARAÑA INCLUIDA!!
MICROFONO CONDENSER PROFESIONAL PARA GRABACION
100% ORIGINAL EN CAJA CERRADO.

ENVIOS A TODO EL PAIS
PARA RETIRO EN PERSONA SELECCIONA "ACUERDO RETIRO CON EL VENDEDOR
REALIZAMOS FACTURAS A o B.

The nickel U 87 Ai Condenser Microphone from Neumann is a large dual-diaphragm condenser microphone. It features three directional patterns, including omnidirectional, cardioid and figure-8. These are selectable with a switch below the head grille and the window above this switch shows the symbol of the selected characteristic. A 10 dB attenuation switch is located on the rear. It enables the microphone to handle sound pressure levels up to 127 dB without distortion. The low frequency response can be reduced to compensate for proximity effect.

The U 87 Ai is used as a main microphone for orchestra recordings, as a spot microphone for single instruments, and extensively as a vocal microphone for all types of music and speech.

The U 87 Ai is addressed from the front. The frequency response of the cardioid and figure-8 directional characteristics are very flat for frontal sound incidence, even in the upper frequency range. The microphone can be used very close to a sound source without the sound becoming unnaturally harsh. By means of a high-pass filter, interference through subsonic and low frequencies are reduced.

The circuitry increases operational headroom of the U 87 Ai by supplying the bias voltages for the capsule through a reduced resistance. The result is a higher sensitivity of 10 dB for identical sound pressure levels, and an improved S/N ratio of 3 dB.

A switch located at the rear attenuates the sensitivity by 10 dB. When this switch is activated, the microphone accepts sound pressure levels up to 127 dB (equivalent to a sound pressure of 45 Pa) without distortion.

An additional switch at the rear allows to change the microphone's cutoff frequency. This reduces low frequency interference directly at the input of the microphone amplifier. This setting also compensates for the unavoidable bass boost that occurs with all pressure gradient transducers when they are used at close distance (proximity effect).

The cardioid characteristic maintains a smooth frequency response at a distance of 30 to 40 cm, and the figure-8 characteristic at a distance of 15 to 20 cm.

Variable large diaphragm microphone
Pressure-gradient transducer with double membrane capsule
Omnidirectional, cardioid, and figure-8 characteristics
Switchable low frequency roll-off
Switchable 10 dB pre-attenuation
Great as a main or as a support microphone

In the Box
Neumann U 87 Ai Condenser Microphone (Nickel)
Wooden Box
Limited 2-Year Warranty

Neumann U 87 Ai Specs
Analog Performance
Operating Principle Pressure Gradient
Transducer Condenser
Polar Pattern Cardioid, Figure-8, Omnidirectional
Pattern Selection Switched
Frequency Range 20 Hz to 20 kHz
Signal to Noise Ratio 71 dB CCIR
69 dB CCIR
68 dB CCIR
82 dB A-Weighted
80 dB A-Weighted
79 dB A-Weighted
Equivalent Noise Level 23 dB CCIR
25 dB CCIR
26 dB CCIR
12 dB A-Weighted
14 dB A-Weighted
15 dB A-Weighted
Maximum SPL 117 dB SPL
Pad -10 dB
THD 0.5%
Impedance 200 Ohms
Load Impedance 1000 Ohms
Sensitivity 28 mV/Pa at 1 kHz into 1 kOhms
22 mV/Pa at 1 kHz into 1 kOhms
20 mV/Pa at 1 kHz into 1 kOhms
General
Output Connectors 1 x 3-Pin XLR
Operating Current Consumption 0.8 µA
Operating Voltage 48 V ± 4 V
Length 7.87" / 200 mm
Diameter 2.20" / 56 mm
Weight 1.10 lbs / 500 g
Packaging Info
Package Weight 2.16 lb
Box Dimensions (LxWxH) 10.1 x 4.75 x 4.0
